ADUM1401ARWZ, гальваническая развязка для цифровых линий 4канала, прямой/обратный канал=3/1, 1mбит/с, 100нс, 2.5кв, uп=2.7...5.5в, iп.макс=4.2ма, -40...+100°c
Описание
Описание ADUM1401ARWZ

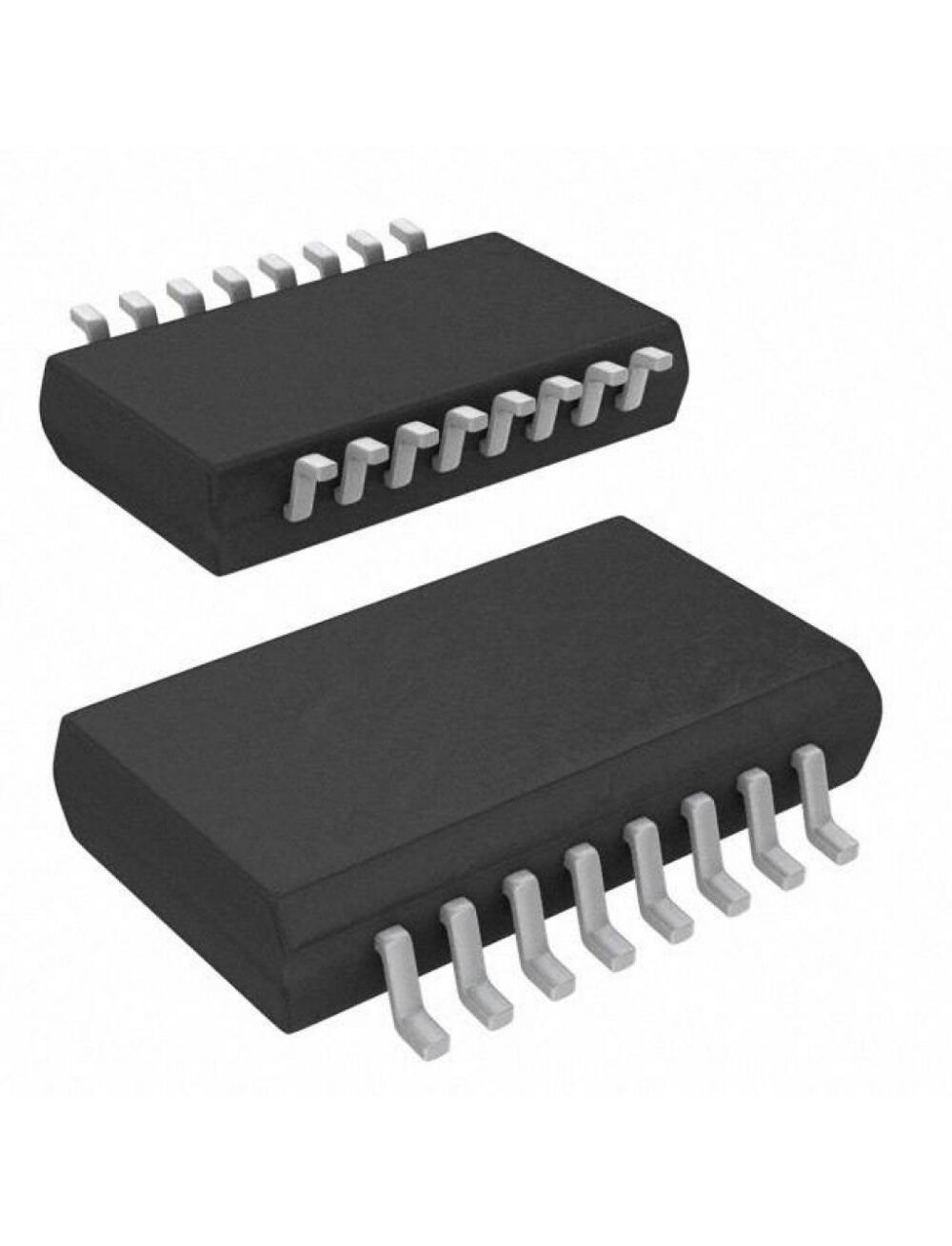

The ADUM1401ARWZ is a quad channel digital isolator in 16 pins WSOIC package. This device is based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives such as optocoupler devices. By avoiding use of LEDs and photodiodes, iCoupler devices remove design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, temperature and lifetime effects are eliminated with simple iCoupler digital interfaces and stable performance characteristics. The ADuM1401 isolator provides four independent isolation channels in a variety of channel configurations and data rates.
• Maximum data rate of 1Mbps
• Maximum propagation delay of 100ns
• Maximum pulse width distortion of 40ns
• Low power operation
• Bidirectional communication
• Precise timing characteristics
• High common mode transient immunity is greater than 25KV/µs
• Supply voltages range from 2.7V to 5.5V
• 3 V/5V level translation
• Operating temperature range from -40°C to 105°C
| Тип | общего применения |
| Технология развязки | magnetic coupling |
| Количество каналов | 4 |
| Конфигурация каналов (прямые/обратные) | 3/1 |
| Полярность | однонаправленная |
| Напряжение изоляции | 2500vrms |
| Скорость передачи данных | 1mbps |
| Время задержки распространения, нс | 100 |
| Напряжение питания, В | 2.7…5.5 |
| Рабочая температура, °C | -40…+105 |
| Корпус | soic-16(0.295 inch) |
| Вес, г | 1 |
