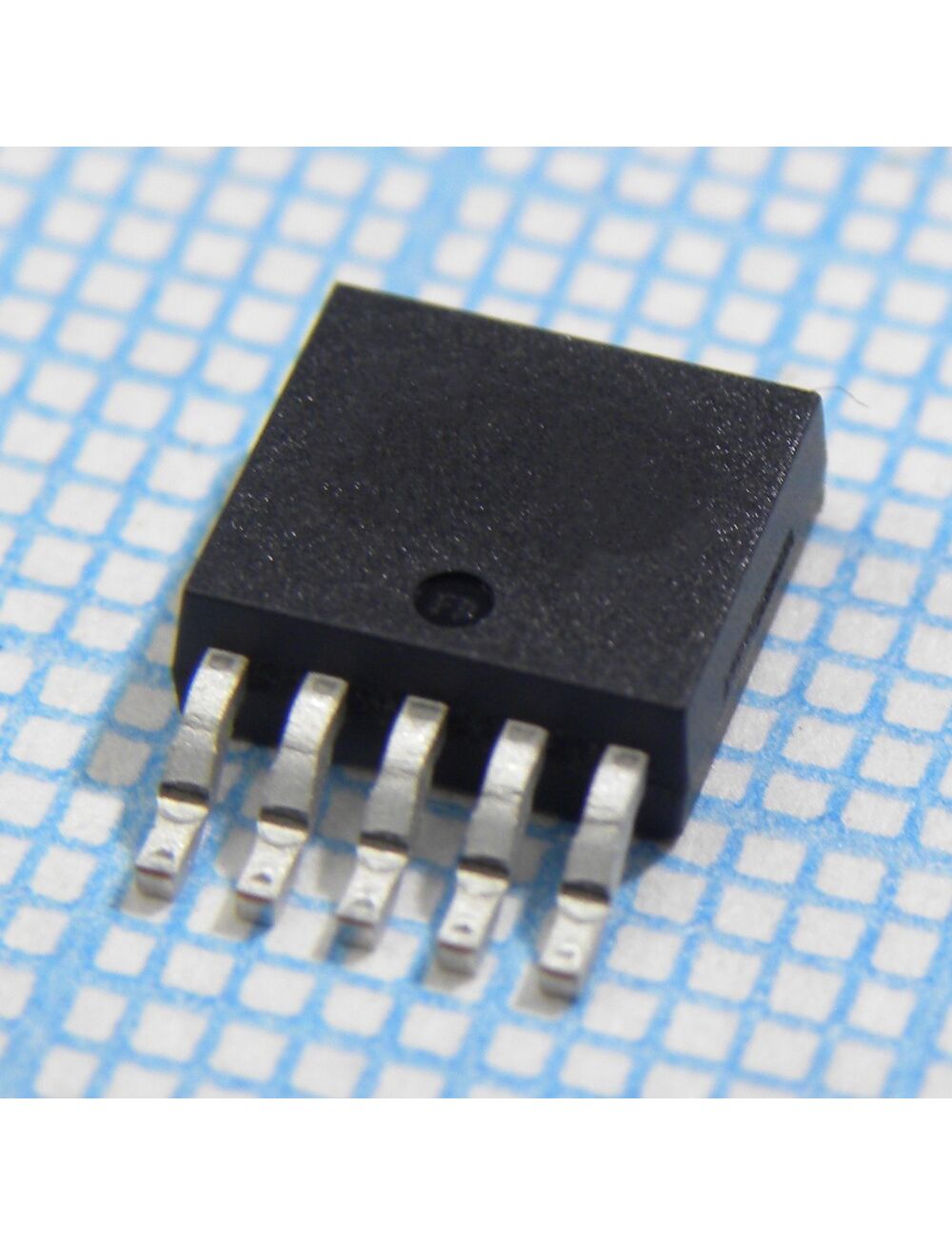

VN820PT-E, драйвер верхнего плеча 9a ppak
Описание
Описание VN820PT-E
The VN820PT-E is a monolithic High-side Driver device designed in STMicroelectronics VIPower® M0-3 technology. The driver is intended for driving any type of load with one side connected to ground. The active VCC pin voltage clamp protects the device against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protects the device against over-load. The device detects the open-load condition in both ON and OFF-state mode. In the OFF-state the device detects if the output is shorted to VCC. The device automatically turns OFF where the ground pin becomes disconnected.
• Very low standby current
• CMOS compatible input
• ON-state open-load detection
• OFF-state open-load detection
• Thermal shutdown protection and diagnosis
• Under-voltage shutdown
• Overvoltage clamp
• Output stuck to VCC detection
• Load current limitation
• Reverse battery protection
| Maximum Operating Temperature | +150 °C |
| Package Type | PPAK |
| Mounting Type | Поверхностный монтаж |
| Width | 6.2мм |
| Высота | 2.4мм |
| Dimensions | 6.6 x 6.2 x 2.4mm |
| Topology | Высокая сторона |
| Length | 6.6мм |
| Количество выходов | 1 |
| Minimum Operating Supply Voltage | 5.5 V |
| Brand | STMicroelectronics |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Supply Voltage | 36 V |
| Pin Count | 4 |
| Automotive Standard | AEC |
| Peak Output Current | 9A |
| Number of Drivers | 1 |
| Вес, г | 1.2 |
