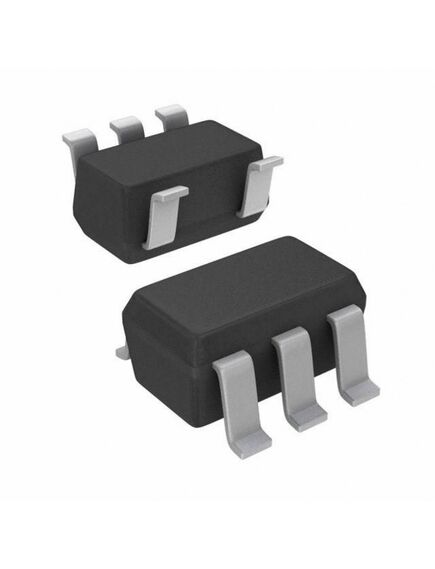

TPS2051BDBVR, переключатель силовой нагрузки
Описание
Описание TPS2051BDBVR
The TPS2051BDBVR is a Single Current Limited Power Distribution Switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mR N-channel MOSFET power switches for power-distribution systems that require multiple power switches. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components. When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant-current mode, pulling the over-current logic output low. When continuous heavy overloads and short-circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage.
• 70mR High-side MOSFET
• 500mA Continuous current
• Thermal and short-circuit protection
• Accurate current limit (0.75A minimum, 1.25A maximum)
• 2.7 to 5.5V Operating range
• 0.6ms Typical rise time
• Under-voltage lockout
• Deglitched fault report (OC)
• No OC glitch during power up
• 1µA Maximum standby supply current
• Green product and no Sb/Br
| Тип | Общего Назначения |
| Конфигурация | High Side |
| Количество выходов | 1 |
| Соотношение - вход: выход | 1:1 |
| Тип выхода | n-канал |
| Напряжение нагрузки, В | 2.7…5.5 |
| Выходной ток (Max), А | 0.5 |
| Сопротивление канала Rds(on) (Typ), Ом | 0.095 |
| Интерфейс | on/off |
| Рабочая температура, °C | -40…+125 |
| Корпус | sot-23-5 |
| Вес, г | 0.08 |
