UCC27322D, драйвер для управления затвором, нижнего плеча, 9 а
Описание
Описание UCC27322D
The UCC27322D is a single high speed low-side MOSFET Driver with enable function. It delivers 9A of peak drive current in an industry standard pin-out. This driver can drive the largest of MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions. This eliminates additional external circuits and can replace multiple components to reduce space and design complexity. Two standard logic options are offered, non-inverting. Using a design that inherently minimizes shoot-through current, the outputs of these can provide high gate drive current where it is most needed at the Miller plateau region during the MOSFET switching transition. Unique hybrid output stage paralleling bipolar and MOSFET transistors (TrueDrive) allows efficient current delivery at low supply voltages. With this drive architecture, UCC3732x can be used in industry standard 6A, 9A and many 12A driver applications. Latch-up and ESD protection circuitries are also included.
• Industry-standard pin-out
• Efficient constant current sourcing using a unique bipolar and CMOS output stage
• TTL/CMOS compatible inputs independent of supply voltage
• 20ns Typical rise and fall times with 10nF load
• Green product and no Sb/Br
| Конфигурация | Low-Side |
| Тип канала | Один |
| Кол-во каналов | 1 |
| Тип управляемого затвора | N/P-CH MOSFET |
| Напряжение питания, В | 4…15 |
| Логическое напряжение (VIL), В | 1.1 |
| Логическое напряжение (VIH), В | 2.7 |
| Пиковый выходной ток нарастания (Source), А | 9 |
| Пиковый выходной ток спада (Sink), А | 9 |
| Тип входа | неинвертирующий |
| Номинальное время нарастания (Rise Time), нс | 20 |
| Номинальное время затухания (Fall Time), нс | 20 |
| Рабочая температура, °C | -40…+105 (TA) |

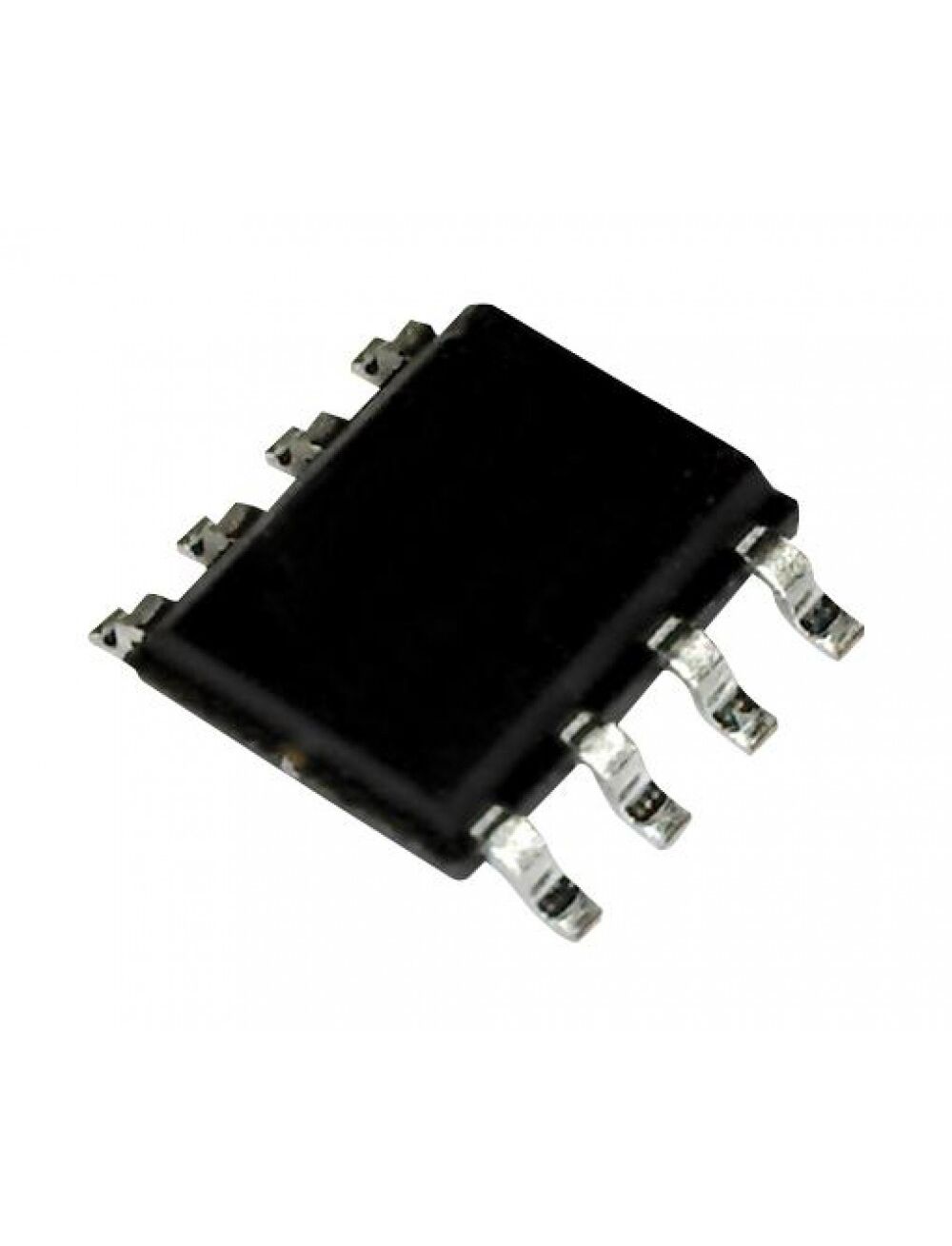

| Корпус | soic-8 (0.154 inch) |
| Вес, г | 0.15 |
