TLC7528CN, 8-разрядный цап
Описание
Описание TLC7528CN
The TLC7528CN is a dual 8-bit Digital-to-analog Converter (DAC) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. Data is transferred to either of the two DAC data latches through a common, 8-bit, input port. Control input DACA/DACB determines which DAC is to be loaded. The load cycle of these devices is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest. This device operates from a 5 to 15V power supply and dissipates less than 15mW. The 2 or 4-quadrant multiplying makes this device a sound choice for many microprocessor-controlled gain-setting and signal-control applications. It can be operated in voltage mode, which produces a voltage output rather than a current output.
• Easily interfaced to microprocessors
• On-chip data latches
• Monotonic over the entire A/D conversion range
• Voltage-mode operation
| Архитектура | r-2r |
| Разрешение | 8 |
| Количество ЦАП | 2 |
| Время стабилизации | 100 нс |
| Тип выхода | небуферизованный-ток |
| Дифференциальный выход | нет |
| Интерфейс данных | parallel |
| Напряжение питания: аналоговое / цифровое | 5…15 в/5…15 в |
| Нелинейность: INL/DNL (LSB) | ±0.5(max)/±0.5(max) |
| Рабочая температура,°C | 0…+70 |

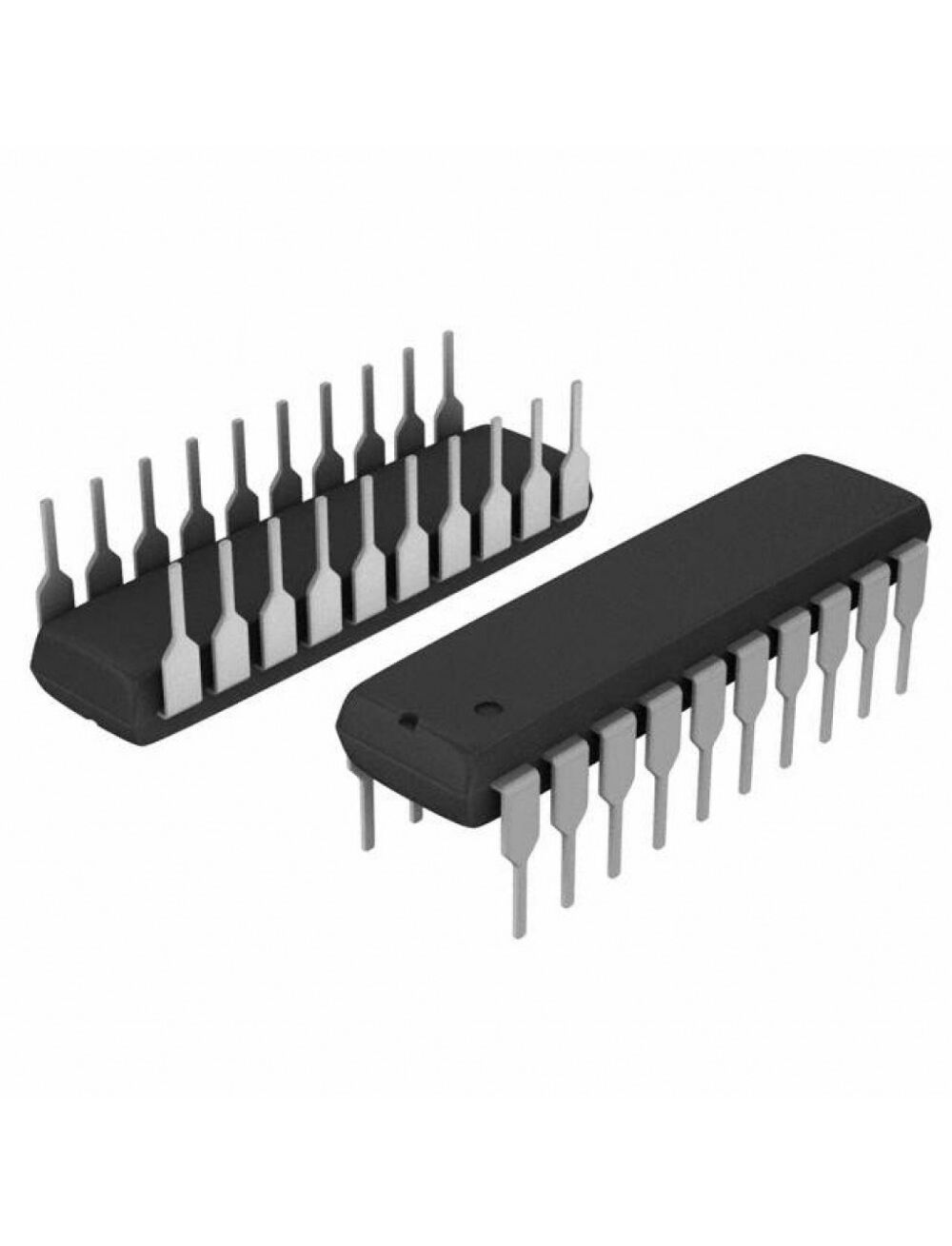

| Корпус | dip-20 (0.300 inch) |
| Вес, г | 2.5 |
