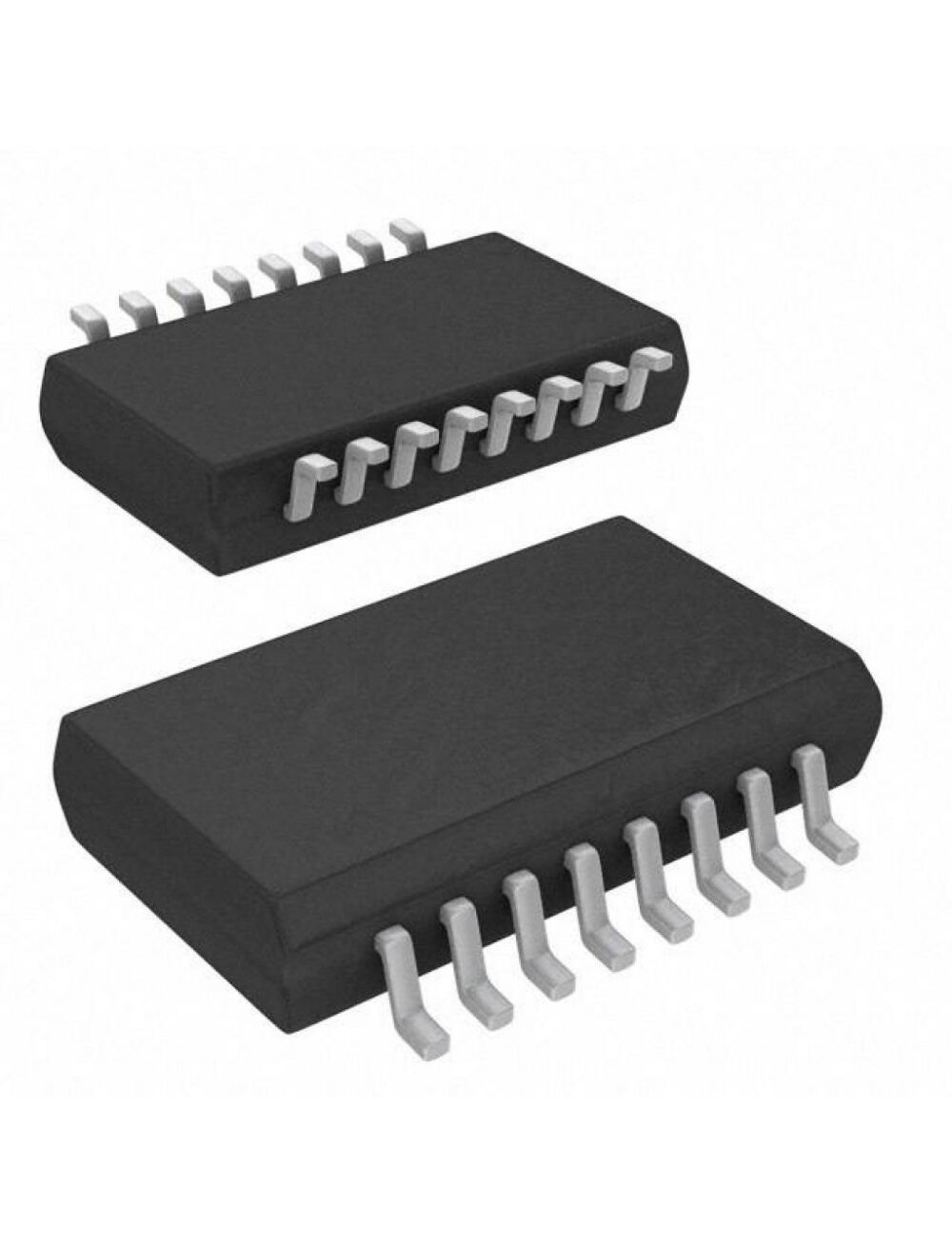

AD7715ARZ-5, 16-разрядный сигма-дельта ацп, питание 3 в/5 в, потребляемый ток 450 мка
Описание
Описание AD7715ARZ-5
The AD7715ARZ-5 is a complete analog front end sigma-delta Analog-to-digital Converter (ADC) for low frequency measurement applications. The part can accept low level input signals directly from a transducer and outputs a serial digital word. It employs a sigma-delta conversion technique to realize up to 16-bit of no missing codes performance. The input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The first notch of this digital filter can be programmed via the on-chip control register allowing adjustment of the filter cutoff and output update rate. It features a differential analog input as well as a differential reference input. It is ideal for use in smart, microcontroller or DSP-based systems. It features a serial interface that can be configured for 3-wire operation.
• Operates from a single supply
• Programmable gain front end gains of 1, 2, 32 and 128
• Differential input capability
• 3-wire serial interface SPI/QSPI™/MICROWIRE™/DSP compatible
• Ability to buffer the analog input
| Архитектура | ацп сигма-дельта(sigma-delta) |
| Разрешение (Бит) | 16 |
| Частота дискретизации (выб/сек.) | 500 |
| Количество A/D конвертеров | 1 |
| Количество входных каналов | 1 |
| Тип входа | Дифференциальный |
| Интерфейс данных | spi, dsp |
| Напряжение питания: аналоговое / цифровое | 5 в/3…5.25 в |
| Рабочая температура,°С | -40…+85 |
| Корпус | soic-16 (0.295 inch) |
| Вес, г | 1 |
