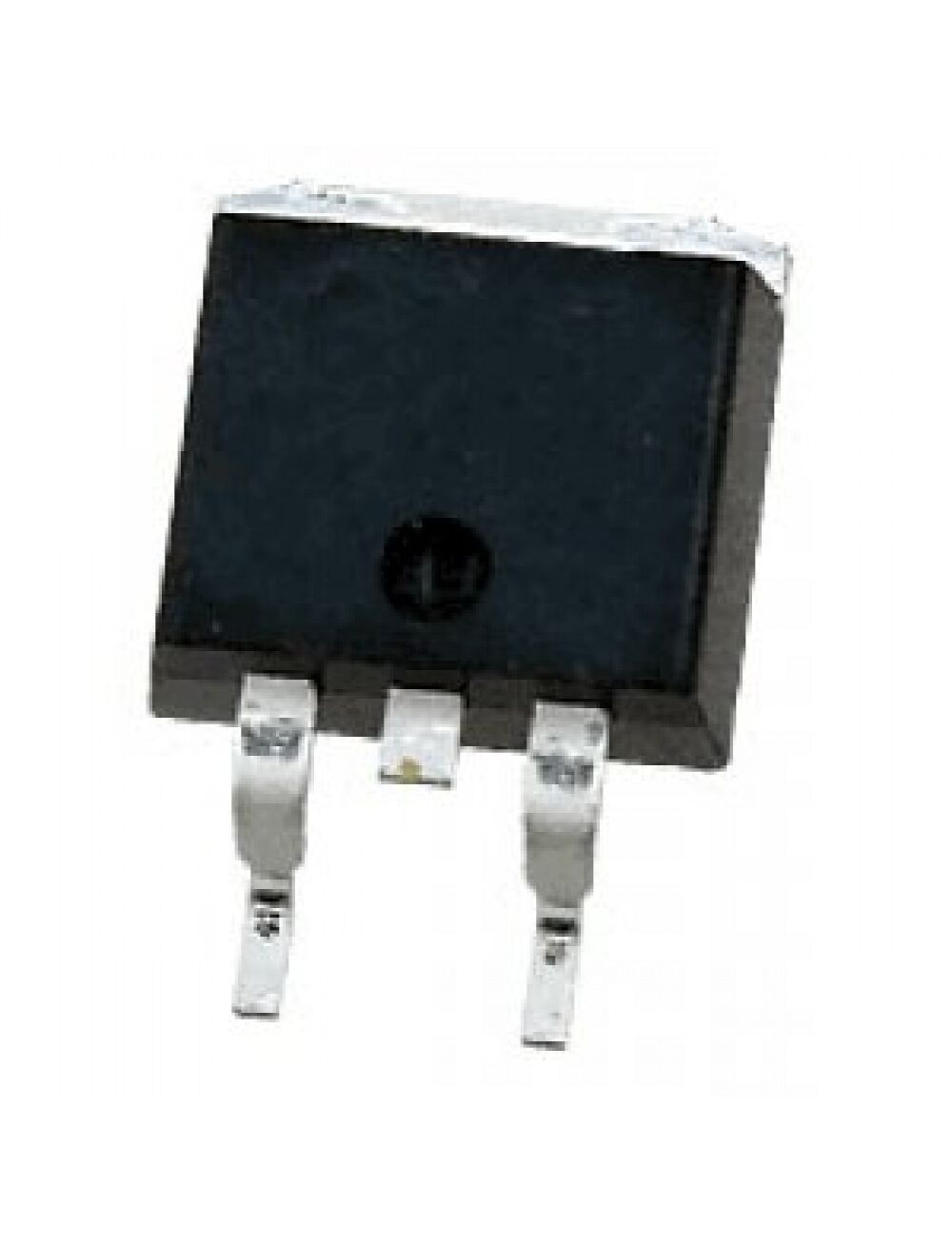

IRL540NSTRLPBF, транзистор полевой n-канальный 100в 36a

КОД: IRL540NSTRLPBF

105.12 ₽

В наличии

Купить в один клик

Задать вопрос

Описание

Описание IRL540NSTRLPBF

N-Channel Power MOSFET 100V, Infineon
The Infineon range of discrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages. And form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.

Maximum Operating Temperature	+175 °C
Maximum Continuous Drain Current	36 A
Package Type	D2PAK (TO-263)
Maximum Power Dissipation	140 W
Mounting Type	Surface Mount
Width	11.3mm
Forward Transconductance	14s
Height	4.83mm
Dimensions	10.67 x 11.3 x 4.83mm
Transistor Material	Si
Number of Elements per Chip	1
Length	10.67mm
Transistor Configuration	Single
Typical Turn-On Delay Time	11 ns
Brand	Infineon
Typical Turn-Off Delay Time	39 ns
Series	HEXFET
Minimum Operating Temperature	-55 °C
Maximum Gate Threshold Voltage	2V
Minimum Gate Threshold Voltage	1V
Maximum Drain Source Resistance	63 mΩ
Maximum Drain Source Voltage	100 V
Pin Count	3
Category	Power MOSFET
Typical Gate Charge @ Vgs	74 nC @ 5 V
Channel Mode	Enhancement
Typical Input Capacitance @ Vds	1800 pF @ 25 V
Channel Type	N
Maximum Gate Source Voltage	-16 V, +16 V
Forward Diode Voltage	1.3V
Вес, г	2.5
