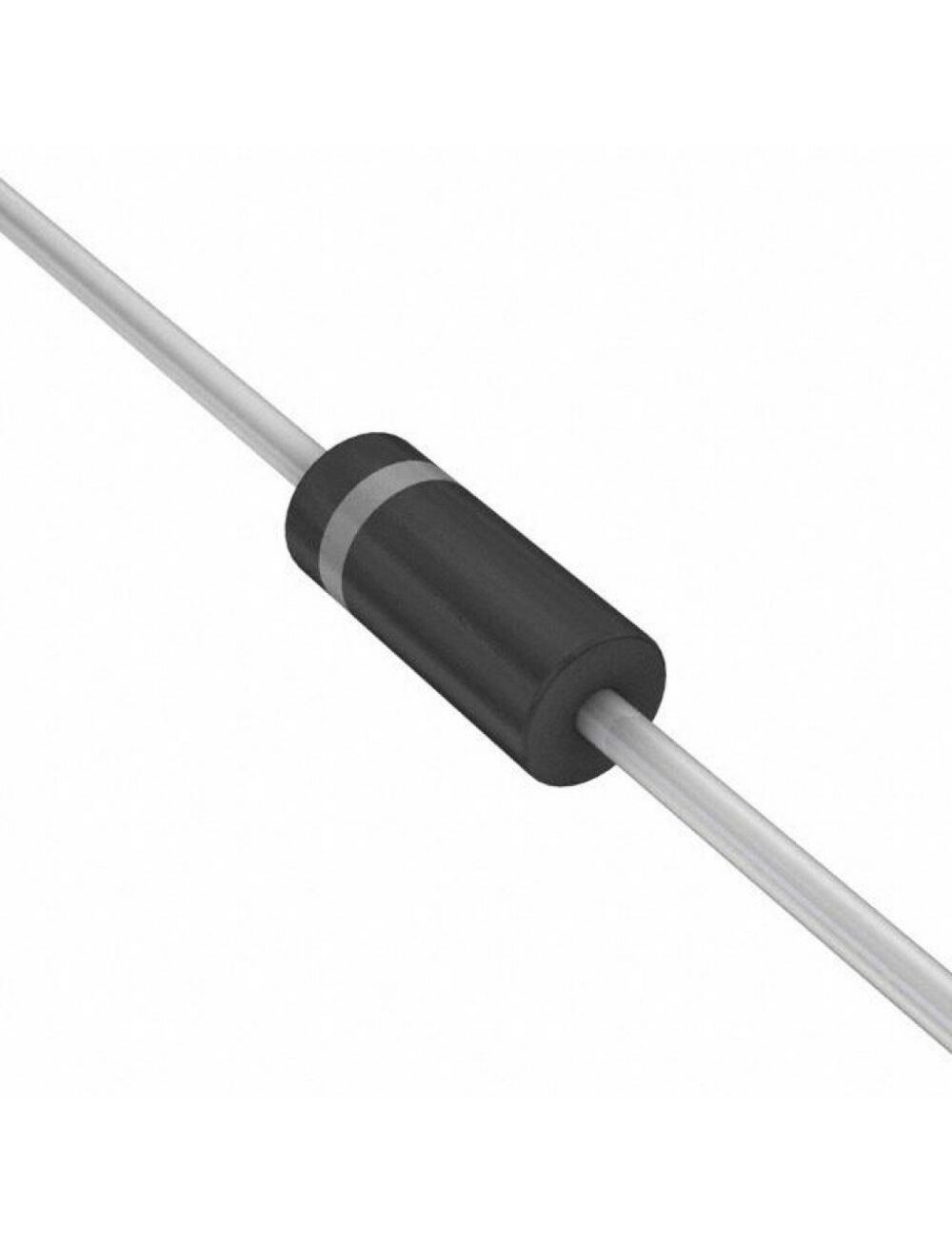

1N5338BG, стабилитрон 5.0вт 5.1в
Войдите в учётную запись, чтобы мы могли сообщить вам об ответе
Описание
Описание 1N5338BG
Zener Diodes 5W Surmetic, 1N5333 to 1N5346 Series, ON Semiconductor
N Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable.
| Diode Configuration | Single |
| Maximum Operating Temperature | +200 °C |
| Zener Type | Voltage Regulator |
| Number of Elements per Chip | 1 |
| Length | 8.89mm |
| Zener Voltage Tolerance | 5% |
| Brand | ON Semiconductor |
| Package Type | DO-15 |
| Maximum Power Dissipation | 5 W |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -65 °C |
| Width | 3.68mm |
| Test Current | 240mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 3.68mm |
| Pin Count | 2 |
| Dimensions | 8.89 x 3.68 x 3.68mm |
| Nominal Zener Voltage | 5.1V |
| Maximum Zener Impedance | 1.5Ω |
| Вес, г | 1.2 |
Особенности
Вес брутто
0.59 г
Динамическое сопротивление
1.5Ом
Код товара
160947
Корпус
DO-201
Краткое описание
DIODE ZENER 5.1V 5W AXIAL Стабилитрон 5.0Вт 5.1В
Макс. рассеиваемая мощность
5Вт
Напряжение стабилизации
5.1В
Нормоупаковка
1000 шт
Обратный ток утечки
1мкА при 1В
Отклонение
±5%
Рабочая температура
-65°C .... 200°C
Тип упаковки
Bulk (россыпь)
Файлы
Https://www.promelec.ru/fs/sources/2e/46/ce/d8/1d78d204497d0a384b7265ff.pdf
