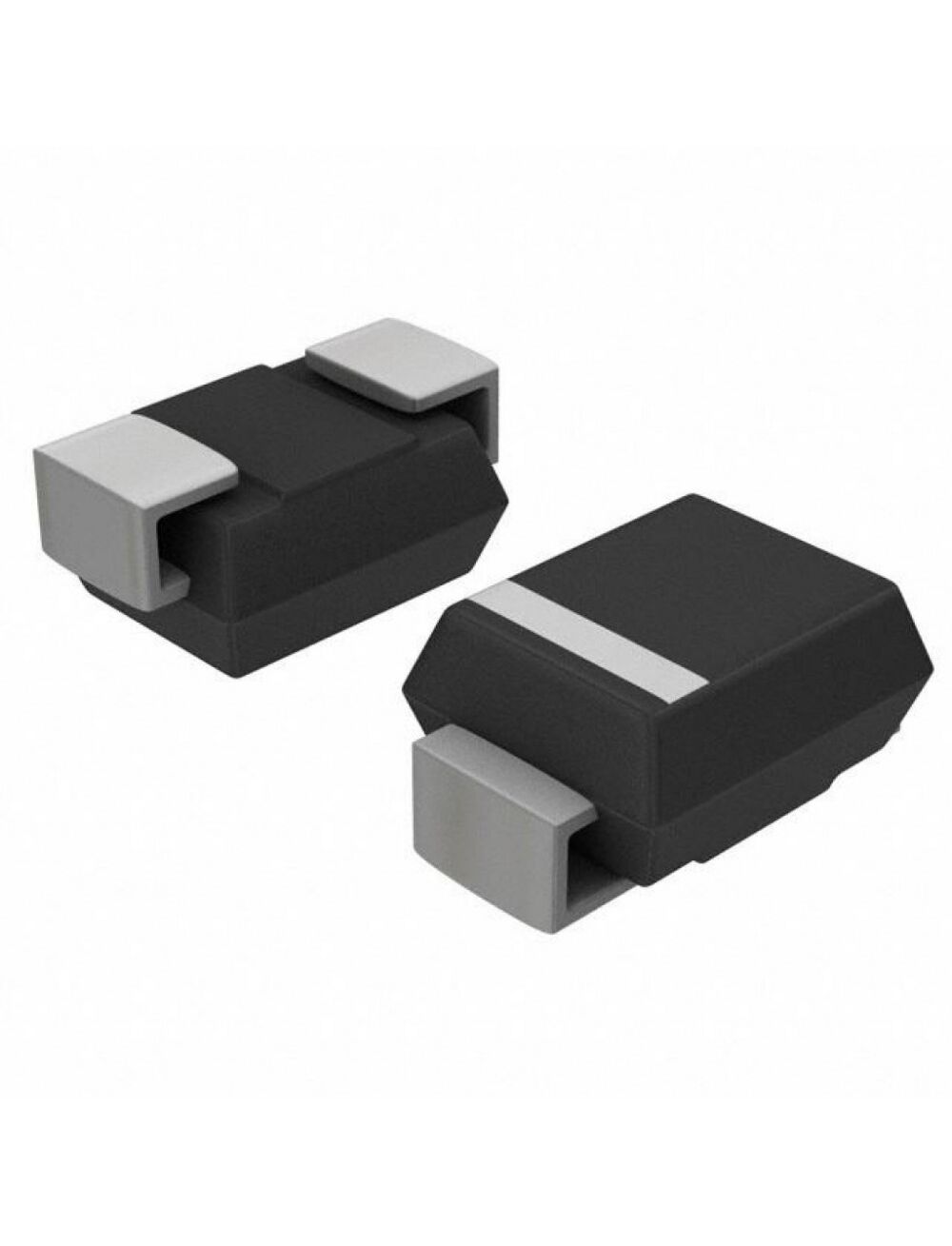

MBRS190T3G, диод шоттки 90в 1а
Описание
Описание MBRS190T3G
The MBRS190T3G is a surface-mount Schottky Power Rectifier with moulded epoxy case. It employs the Schottky barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification or as free-wheeling and polarity protection diodes in surface-mount applications where compact size and weight are critical to the system.
• All external surfaces corrosion-resistant
• Cathode polarity band
• Small compact surface mountable package with J-bend leads
• Rectangular package for automated handling
• Highly stable oxide passivated junction
• High blocking voltage
• Guard-ring for stress protection
• AEC-Q101 qualified and PPAP capable
| Материал | кремний |
| Кол-во диодов в корпусе | 1 |
| Конфигурация диода | Одиночный |
| Максимальное постоянное обратное напряжение, Vr | 90 В |
| Максимальный (средний) прямой ток на диод, If(AV) | 1 А |
| Максимальное прямое напряжение при Tj=25 °C, Vf при If | 750 мВ при 1 А |
| Максимальный обратный ток при Tj=25 °C, Ir при Vr | 500 мкА при 90 В |
| Рабочая температура PN-прехода | -65…+175 C |
| Корпус | DO-214AA / SMB |
| Вес, г | 0.26 |
