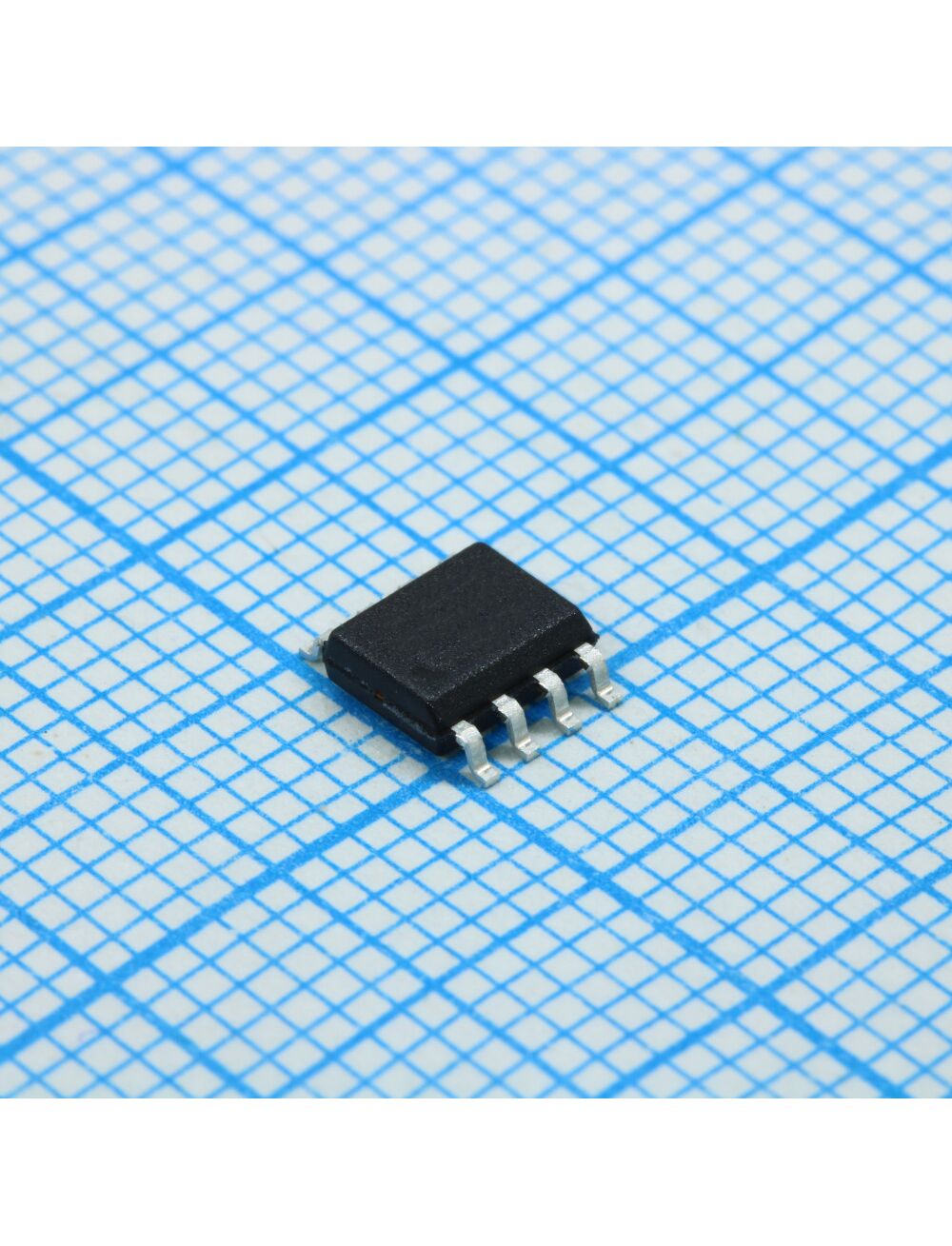

MAX31855KASA+, датчик температуры для термопары, цифровой, ± 2°c, -200-1350 °c
Описание
Описание MAX31855KASA+
The MAX31855KASA+ is a cold junction compensated thermocouple to digital converter with built-in 14bit analogue to digital converter in 8 pin NSOIC package. The device contains cold junction compensation sensing and correction, digital controller, SPI compatible interface and associated control logic. It is designed to work in conjunction with an external microcontroller (µC) in thermostatic, process control or monitoring applications. The MAX31855K performs cold junction compensation and digitizes the signal from K type thermocouple with measuring temperature range of -200°C to +1350°C. The Thermocouple temperature gain and offset error ((41.276µV/°C nominal sensitivity)) is ±2°C at T (thermocouple) = -200°C to +700°C, TA = -20°C to +85°C. The data outputs in a signed 14bit, SPI compatible read only format.
• Supply voltage range from 3V to 3.6V
• Serial clock frequency of 5MHz
• Integration reduces design time and lowers system cost
• Detects thermocouple shorts to GND or VCC and open thermocouple
• 14bit, 0.25°C resolution converter
• Power supply current is 900µA
• Thermocouple input bias current is 100nA
• Temperature conversion time is 70ms and thermocouple conversion power-up time is 200ms
| Maximum Operating Temperature | +1350 °C |
| Length | 5мм |
| Typical Single Supply Voltage | 3.3 V |
| Brand | Maxim Integrated |
| Power Supply Type | Одинарный |
| Package Type | SOIC |
| Mounting Type | Поверхностный монтаж |
| Minimum Operating Temperature | -200 °C |
| Width | 4мм |
| Maximum Supply Current | 1500 мкА |
| Rail to Rail | No |
| Высота | 1.5мм |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.5мм |
| Вес, г | 0.15 |
